Home » Products » Strip and Crimp » RC021
| Machine type | Equipment for folding the metallic braid on coaxial cables |
| Processable cable type | Coaxial cables |
| Processable cable models | RG58 RG59 |
| Cable outer diameter | Max Ø 4.5 mm |
| Special features | Shield braid folding 70°–180° |
| Power | 0.30 kW (0.40 hp) |
| Power supply | 1×230 |
| Voltage | 230 Vac |
| Frequency | 50 – 60 Hz |
| Certification | CE |

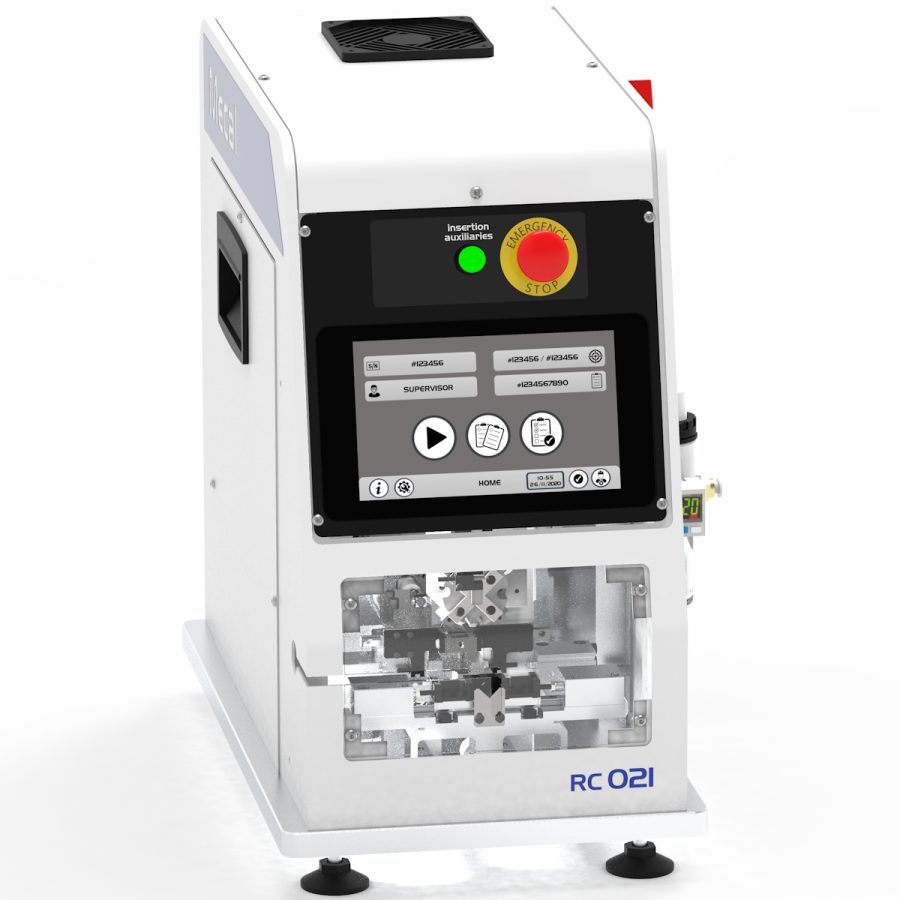

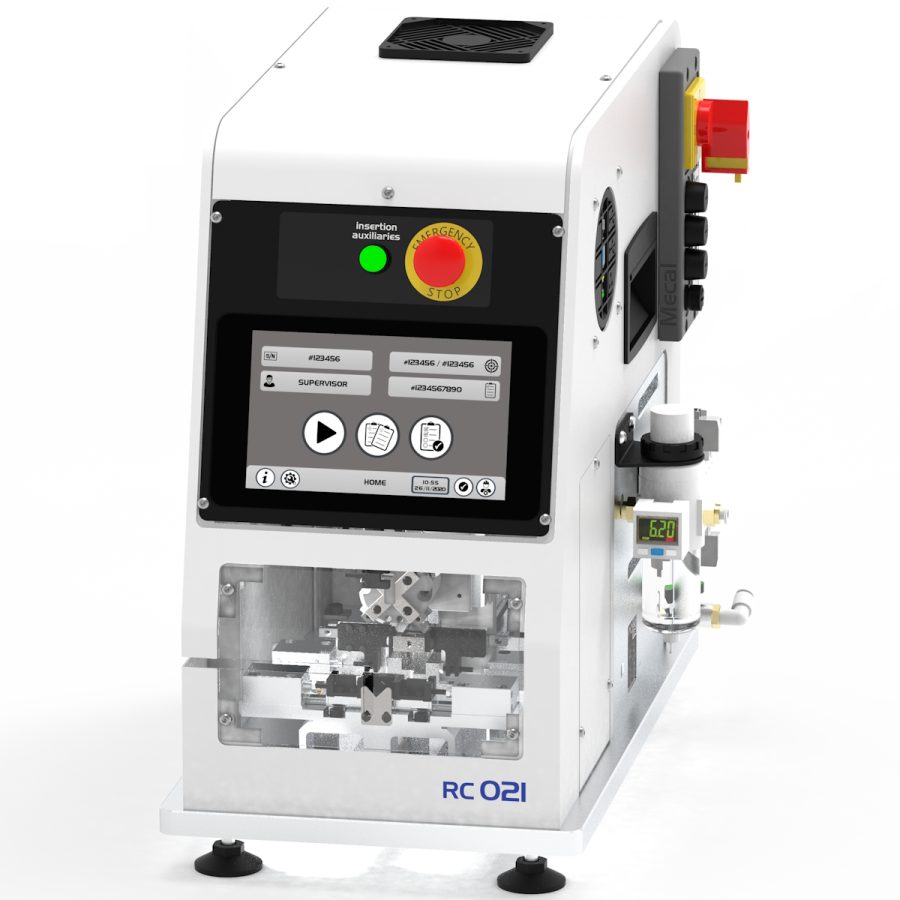

RC021 is a bench-top unit designed for controlled folding of the metallic braid on coaxial cables. It handles different braid types and allows precise adjustment of the folding angle from 70° to 180°, even on previously crimped components. Ideal for completing high-quality coaxial processing operations with consistent repeatability.
