| Machine type | Programmable strip and crimp machine with rotary stripping unit |
| Crimping machine working height | 135.8 ±0.02 mm (5.35 in) |
| Crimping machine stroke | 40 mm (1.57 in) |
| Processable cable type | Complex, coaxial and multi-layer cables |
| Processable cross-section | Min 0.05 mm² (30 AWG) Max 4 mm² (11 AWG) and multi-layer coaxial cables |
| Jacket stripping length | Max Ø 6 mm |
| Stripping length | Max 14.5 mm |
| Wire end preparation length | from 0 to 8 mm |
| Special features | Rotary stripping unit for difficult insulation materials |
| Power | 1.15 kW (1.54 hp) |
| Power supply | 1×230 |
| Voltage | 230 Vac |
| Frequency | 50 – 60 Hz |
| Certification | CE |

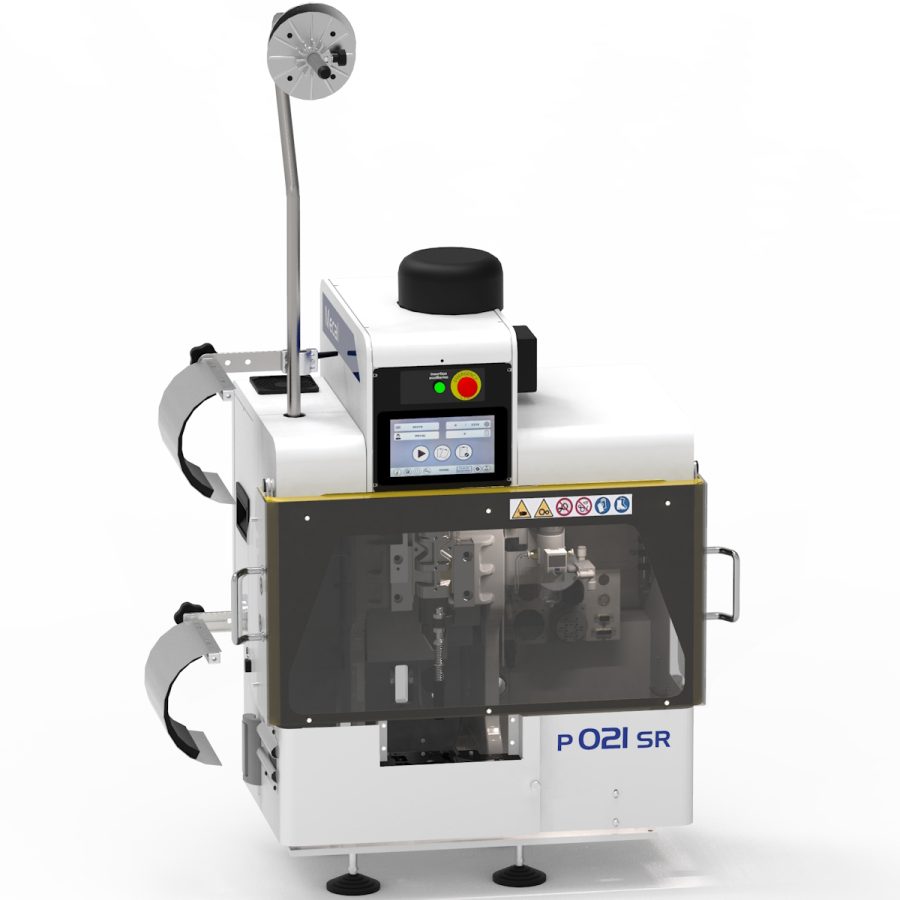

P021 SR is designed for processing complex, coaxial and multi-layer cables. The rotary stripping unit ensures excellent results even on difficult insulation materials and larger diameters. Engineered for advanced technical applications where stripping precision and crimp quality are essential.
