| Edition | Two-post die for hexagonal crimping |
| Feed | Front-feed |
| Feed system | Manual slide |
| Working height | 190 ±0.02 mm (7.48 in) for X versions 212 ±0.02 mm (8.35 in) for Z versions |
| Stroke | 40 / 50 mm (1.57 / 1.97 in) |
| Cable cross-section | Min 4 mm² (11 AWG) Max 35 mm² (2 AWG) |
| Terminal pitch | Loose terminal |
| Terminal thickness | Over 1.5 mm (0.059 in) |

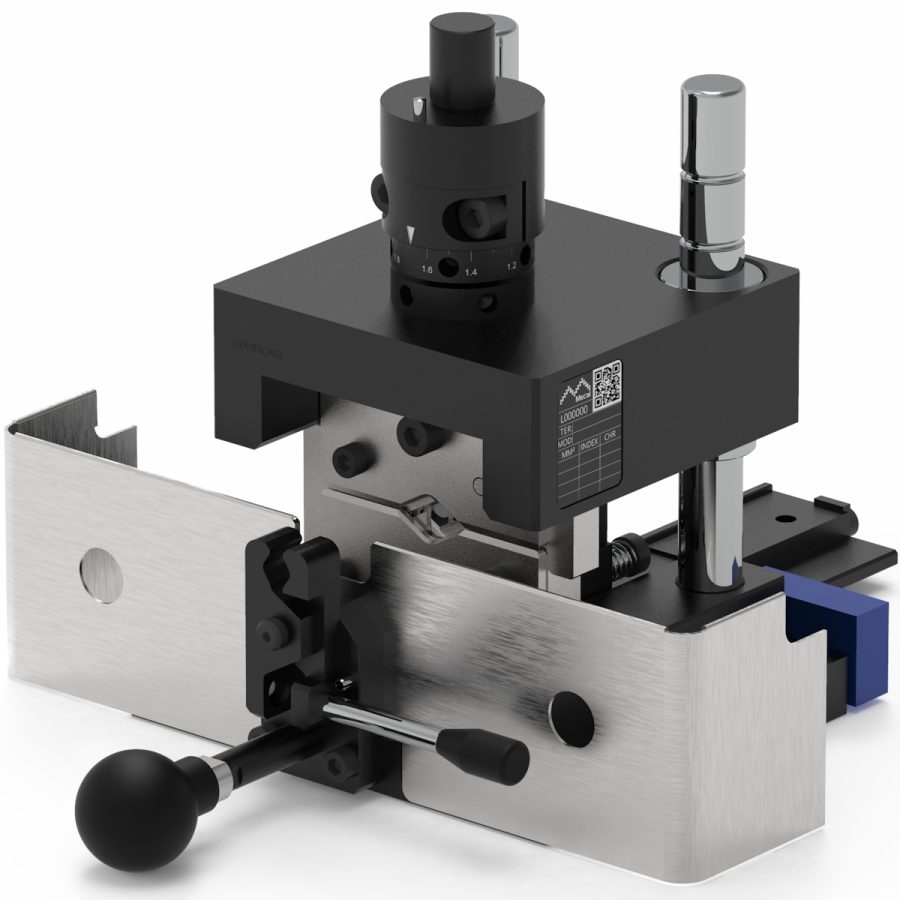

MSES EXA retains MSES strength while introducing hexagonal crimping dies. Ideal for applications requiring compact and uniform deformation, it ensures high electrical and mechanical quality on large cross sections.
