Home » Products » Applicators » MSEG
| Edition | Two-post die |
| Feed | Front-feed |
| Feed system | Manual slide |
| Working height | 190 ±0.02 mm (7.48 in) for X versions 212 ±0.02 mm (8.35 in) for Z versions |
| Stroke | 40 / 50 mm (1.57 / 1.97 in) |
| Cable cross-section | Max 75 mm² (000 AWG) |
| Terminal pitch | Loose terminals |
| Terminal thickness | Over 1.5 mm (0.059 in) |

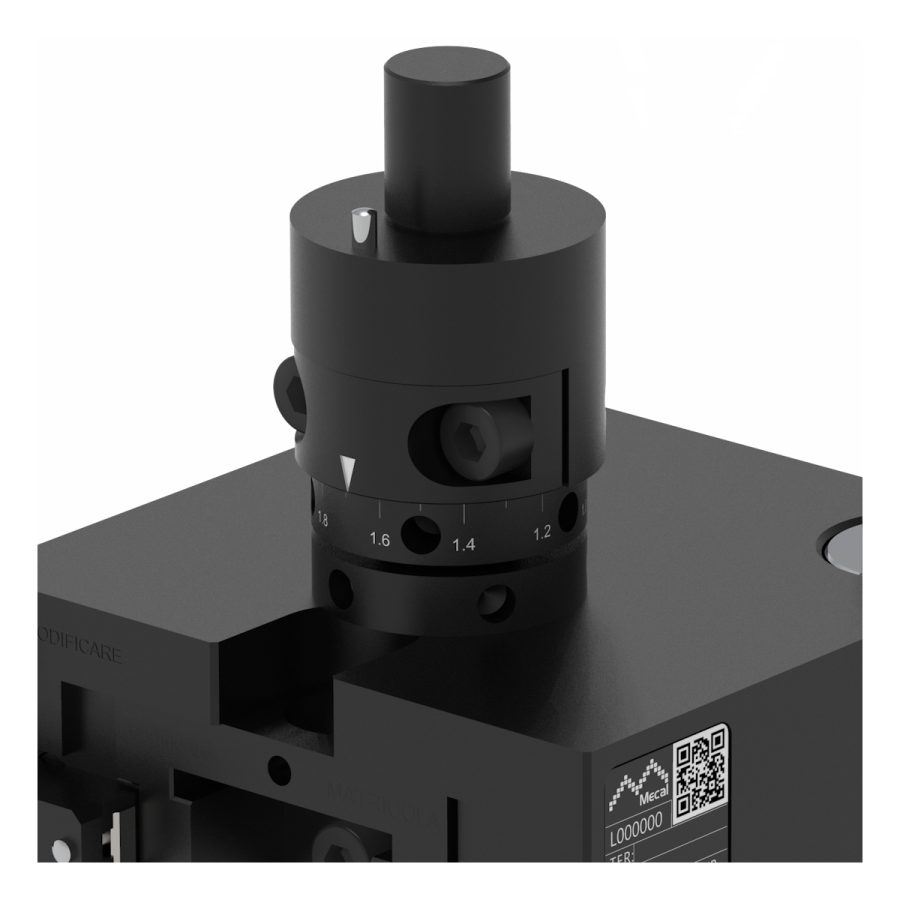

MSEG evolves the slide two-post dies concept with removable die supports, drastically reducing changeover times. Ideal for flexible production requiring speed and efficiency without compromising robustness.
