| Applications | Wire stripping |
| Wire stripping system | Stripping and transfer to the crimping axis |
| Actuation | Pneumatic |
| Processable wire cross-section | Min 0.14 mm² (26 AWG) Max 2.5 mm² (13 AWG) |
| Insulation diameter | not available |
| Stripping length | Min 2.5 mm (0.1 in) Max 12 mm (0.47 in) |
| Jacket stripping length (multi-core cables) |
Min 25 mm (0.98 in) |

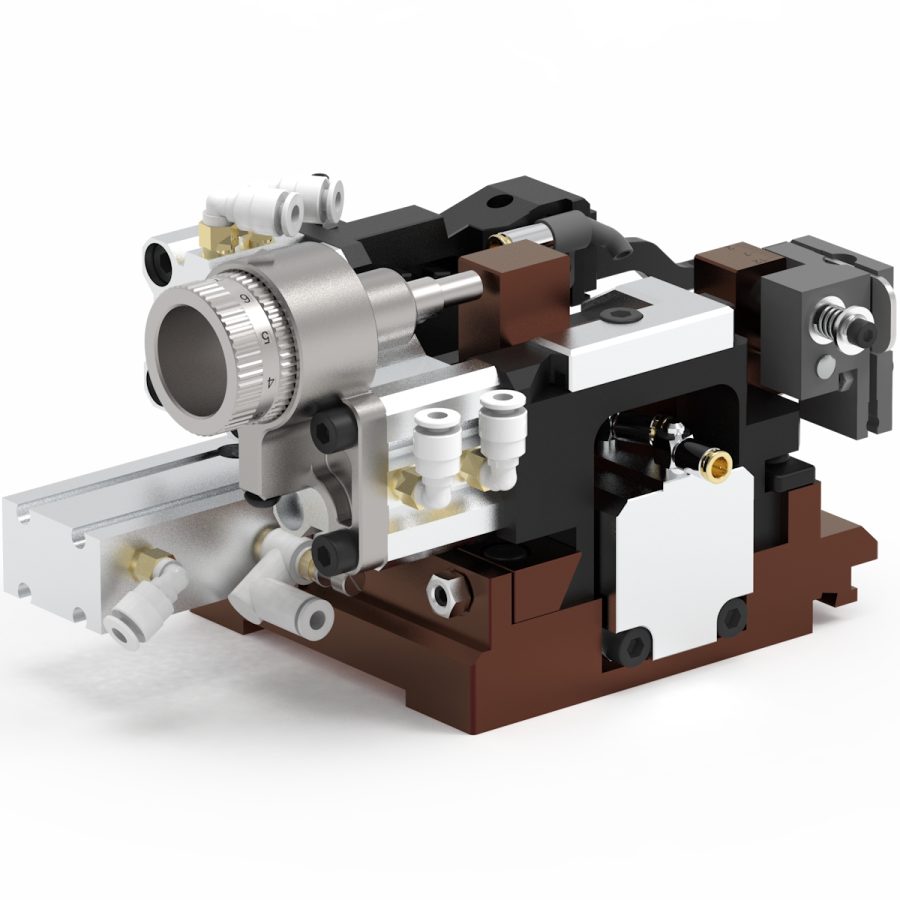

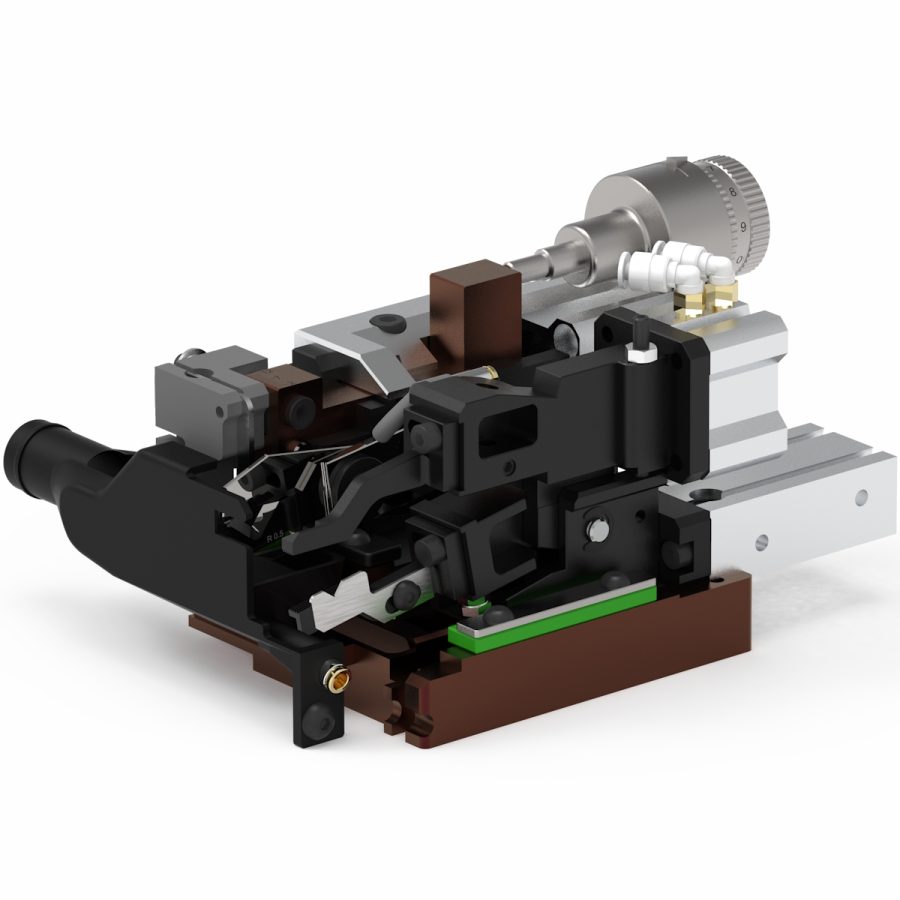

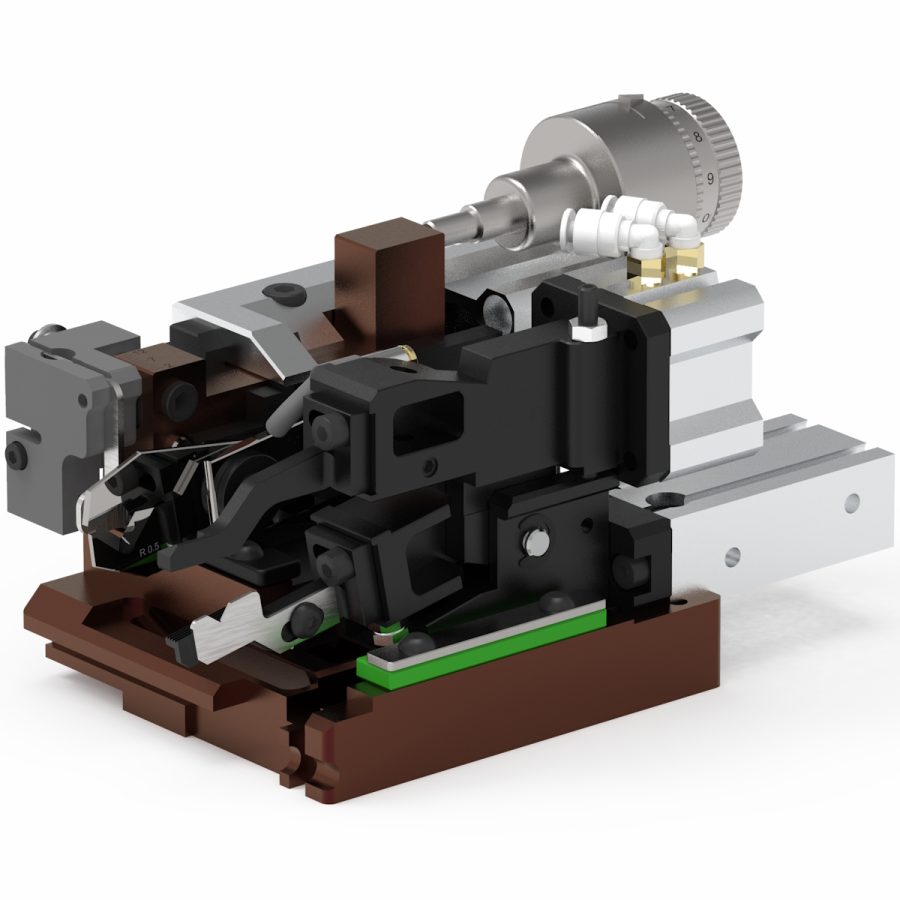

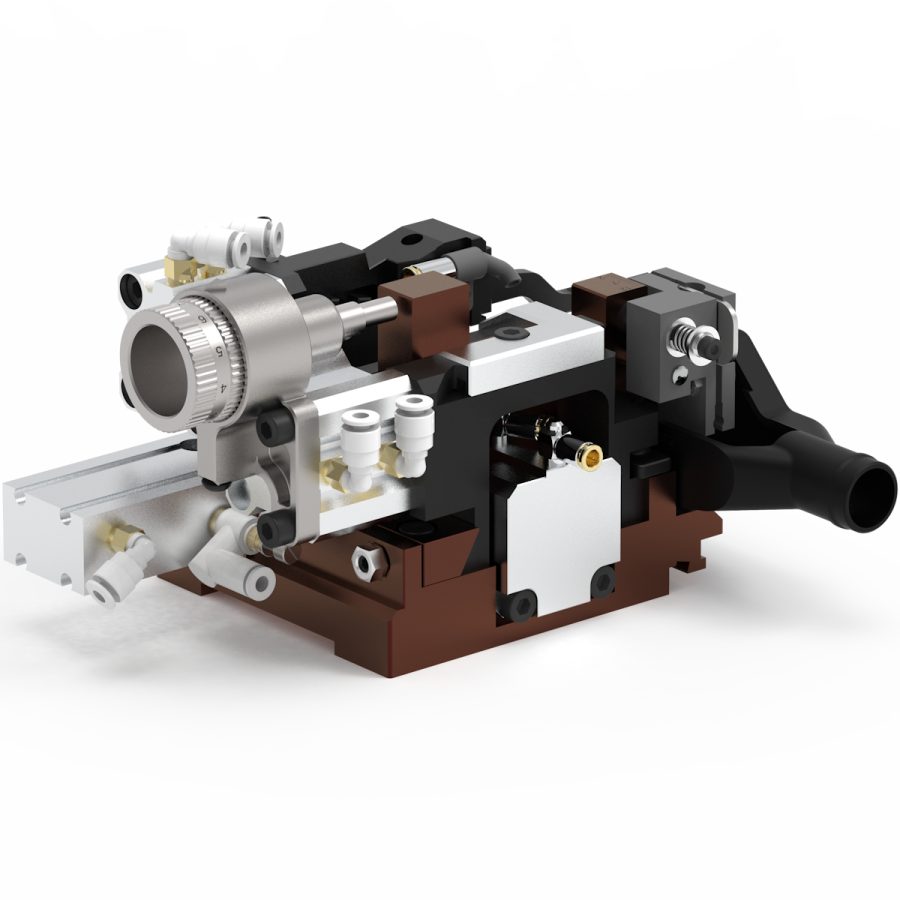

SC11 is a compact and versatile wire stripping unit, ideal for standard terminal wiring applications. Compatible with front-feed and left-side applicators, it ensures clean, precise stripping and smooth wire transfer to the crimping station. It operates in manual or automatic mode and integrates seamlessly with Mecal workstations.
